Example #2: En-echelon strike-slip faults
![]()
We extend example #1 (below) by rotating the earlier deformation field and placing another fault en echelon to the first, giving a right-step in a right-lateral strike-slip system, which should yield a region of uplift in the step (think New Madrid).

Example 1 (above), which can be viewed in more detail here.

Example 2 (above) which has both the deformation field and the faults striking at 45-degrees.
To rotate the deformation field counter-clockwise, as shown above, we rotate the coordinate axes clockwise, which is a negative rotation (using the convention described here).
Thus: Dn = R.D.R'
where D is the previous displacement gradient tensor (dgt), Dn the new, rotated dgt, and R is the rotation matrix (R' is its transpose).

Example #2
The input file
* POISSONS RATIO YOUNGS MOD #PLANES COEFF INTERNAL FRICTION BACKGROUND DEFORMATION (See manual)
.25 7.E10 2 0.6 displacement gradient
* Background (blank; Exx,Exy,Exz,Eyy,Eyz,Ezz; Sxx,Sxy,Sxz,Syy,Syz,Szz; dUx/dx /dy /dz,dUy/dx /dy /dz,dUz/dx /dy /dz)
-.5e-4 .5e-4 0 -.5e-4 .5e-4 0 0 0 0
for each plane:
ORG:XO YO ZO WDTH:STK DIP #SUB-ELEM:STK DIP STK DIP
10.0 10. 0.0 50. 20. 3 2 45. 90
38.2843 52.4264 0.0 50. 20. 3 2 45. 90
for each plane (at each fixed distance along strike, going up-dip):
PLN,SUB-ELEM code BC-shear(STK) BC2-shear(DIP) BC3-normal
1
1 1 12 0. 0.0 0.0
1 2 12 0. 0.0 0.0
1 3 12 0. 0.0 0.0
2 1 12 0. 0.0 0.0
2 2 12 0. 0.0 0.0
2 3 12 0. 0.0 0.0
2
1 1 12 0. 0.0 0.0
1 2 12 0. 0.0 0.0
1 3 12 0. 0.0 0.0
2 1 12 0. 0.0 0.0
2 2 12 0. 0.0 0.0
2 3 12 0. 0.0 0.0
* Run everything else interactively
Non-interactive grid specification
plane
vector
* Coordinate system of output
in-plane
* Output files to create
stress
elements
* Output file suffix
pln
* Xo, Yo, Zo (Ref.corner), strike,dip,length,width:
10.1 10.1 0. 45. 90. 50. 20.
* number of grid points in the strike and dip directions
50 20.
Highlights of this input file are:

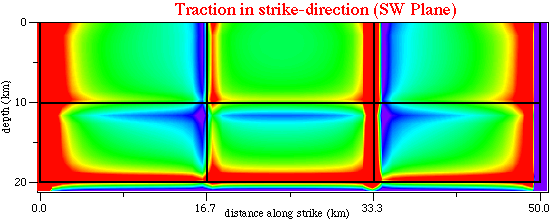

Remember that the boundary conditions set this to zero - but only at
the center point!
* POISSONS RATIO YOUNGS MOD #PLANES COEFF INTERNAL FRICTION BACKGROUND DEFORMATION (See manual)
.25 7.E10 2 0.6 displacement gradient
* Background (blank; Exx,Exy,Exz,Eyy,Eyz,Ezz; Sxx,Sxy,Sxz,Syy,Syz,Szz; dUx/dx /dy /dz,dUy/dx /dy /dz,dUz/dx /dy /dz)
-.5e-4 .5e-4 0 -.5e-4 .5e-4 0 0 0 0
for each plane:
ORG:XO YO ZO WDTH:STK DIP #SUB-ELEM:STK DIP STK DIP
10.0 10. 0.0 50. 20. 10 5 45. 90
38.2843 52.4264 0.0 50. 20. 10 5 45. 90
for each plane (at each fixed distance along strike, going up-dip):
PLN,SUB-ELEM code BC-shear(STK) BC2-shear(DIP) BC3-normal
1
1 1 12 0. 0.0 0.0
1 2 12 0. 0.0 0.0
1 3 12 0. 0.0 0.0
1 4 12 0. 0.0 0.0
1 5 12 0. 0.0 0.0
1 6 12 0. 0.0 0.0
1 7 12 0. 0.0 0.0
1 8 12 0. 0.0 0.0
1 9 12 0. 0.0 0.0
1 10 12 0. 0.0 0.0
2 1 12 0. 0.0 0.0
2 2 12 0. 0.0 0.0
2 3 12 0. 0.0 0.0
2 4 12 0. 0.0 0.0
2 5 12 0. 0.0 0.0
2 6 12 0. 0.0 0.0
2 7 12 0. 0.0 0.0
2 8 12 0. 0.0 0.0
2 9 12 0. 0.0 0.0
2 10 12 0. 0.0 0.0
3 1 12 0. 0.0 0.0
3 2 12 0. 0.0 0.0
3 3 12 0. 0.0 0.0
3 4 12 0. 0.0 0.0
3 5 12 0. 0.0 0.0
3 6 12 0. 0.0 0.0
3 7 12 0. 0.0 0.0
3 8 12 0. 0.0 0.0
3 9 12 0. 0.0 0.0
3 10 12 0. 0.0 0.0
4 1 12 0. 0.0 0.0
4 2 12 0. 0.0 0.0
4 3 12 0. 0.0 0.0
4 4 12 0. 0.0 0.0
4 5 12 0. 0.0 0.0
4 6 12 0. 0.0 0.0
4 7 12 0. 0.0 0.0
4 8 12 0. 0.0 0.0
4 9 12 0. 0.0 0.0
4 10 12 0. 0.0 0.0
5 1 12 0. 0.0 0.0
5 2 12 0. 0.0 0.0
5 3 12 0. 0.0 0.0
5 4 12 0. 0.0 0.0
5 5 12 0. 0.0 0.0
5 6 12 0. 0.0 0.0
5 7 12 0. 0.0 0.0
5 8 12 0. 0.0 0.0
5 9 12 0. 0.0 0.0
5 10 12 0. 0.0 0.0
2
1 1 12 0. 0.0 0.0
1 2 12 0. 0.0 0.0
1 3 12 0. 0.0 0.0
1 4 12 0. 0.0 0.0
1 5 12 0. 0.0 0.0
1 6 12 0. 0.0 0.0
1 7 12 0. 0.0 0.0
1 8 12 0. 0.0 0.0
1 9 12 0. 0.0 0.0
1 10 12 0. 0.0 0.0
2 1 12 0. 0.0 0.0
2 2 12 0. 0.0 0.0
2 3 12 0. 0.0 0.0
2 4 12 0. 0.0 0.0
2 5 12 0. 0.0 0.0
2 6 12 0. 0.0 0.0
2 7 12 0. 0.0 0.0
2 8 12 0. 0.0 0.0
2 9 12 0. 0.0 0.0
2 10 12 0. 0.0 0.0
3 1 12 0. 0.0 0.0
3 2 12 0. 0.0 0.0
3 3 12 0. 0.0 0.0
3 4 12 0. 0.0 0.0
3 5 12 0. 0.0 0.0
3 6 12 0. 0.0 0.0
3 7 12 0. 0.0 0.0
3 8 12 0. 0.0 0.0
3 9 12 0. 0.0 0.0
3 10 12 0. 0.0 0.0
4 1 12 0. 0.0 0.0
4 2 12 0. 0.0 0.0
4 3 12 0. 0.0 0.0
4 4 12 0. 0.0 0.0
4 5 12 0. 0.0 0.0
4 6 12 0. 0.0 0.0
4 7 12 0. 0.0 0.0
4 8 12 0. 0.0 0.0
4 9 12 0. 0.0 0.0
4 10 12 0. 0.0 0.0
5 1 12 0. 0.0 0.0
5 2 12 0. 0.0 0.0
5 3 12 0. 0.0 0.0
5 4 12 0. 0.0 0.0
5 5 12 0. 0.0 0.0
5 6 12 0. 0.0 0.0
5 7 12 0. 0.0 0.0
5 8 12 0. 0.0 0.0
5 9 12 0. 0.0 0.0
5 10 12 0. 0.0 0.0
* Run everything else interactively
Non-interactive grid specification
plane
vector
* Coordinate system of output
in-plane
* Output files to create
stress
* Output file suffix
out
* Xo, Yo, Zo (Ref.corner), strike,dip,length,width:
10.1 10.1 0. 45. 90. 50. 20.
* number of grid points in the strike and dip directions
50 20.
* Run everything else interactively Non-interactive grid specification plane xyz * Coordinate system of output global * Output files to create displacements * Output file suffix out * Xo, Yo, Zo (Ref.corner), strike,dip,length,width: -50 -50 0 0 0 200 200 * number of grid points in the strike and dip directions 50 50

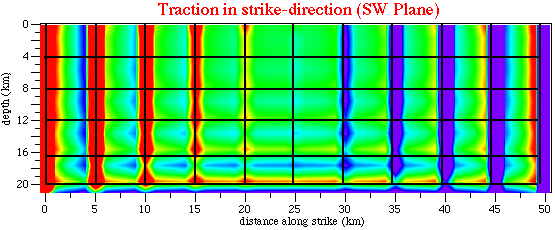

Highlights of this input file:

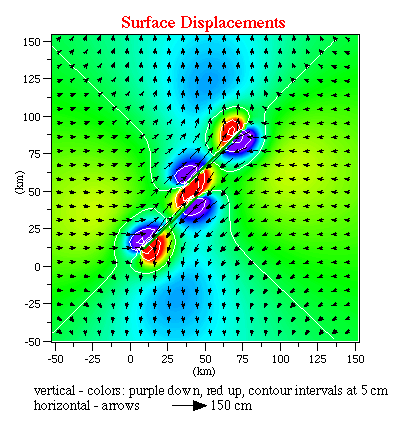

Here are the surface displacements:
