This material is based upon work supported by the National Science Foundation under Grant No. 1053530

Collaborative Research: Northern Embayment Lithosphere Experiment (NELE)

Two Complete Wilson Cycles - Tectonic History of the Central and Eastern U.S.

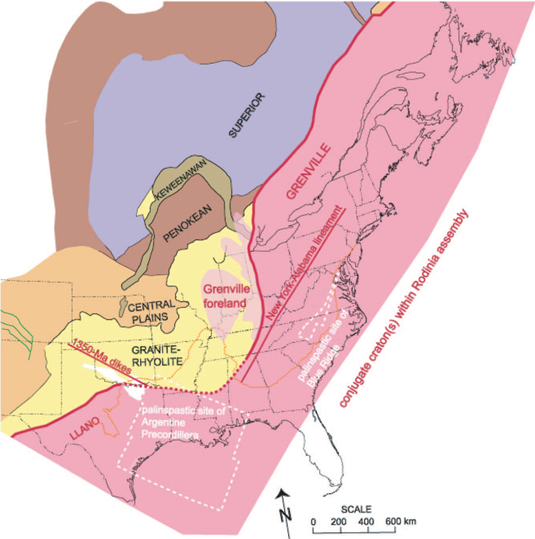

Assembly of Rodinia during Grenville orogen (1.35 to1.0Ga)

(M E) Granite/Rhyolite Basement

Assembly of Rodinia during Grenville orogen (1.35 to1.0Ga)

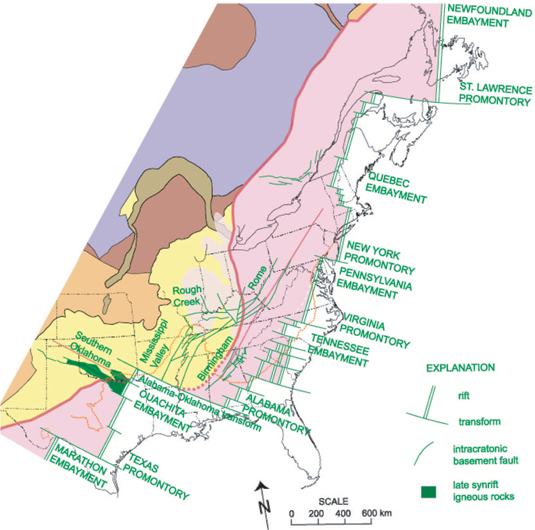

Reelfoot Rift, Southern Margin TransformBreakup of Rodinia, Opening of Iapetus Ocean (760Ma - 530Ma)

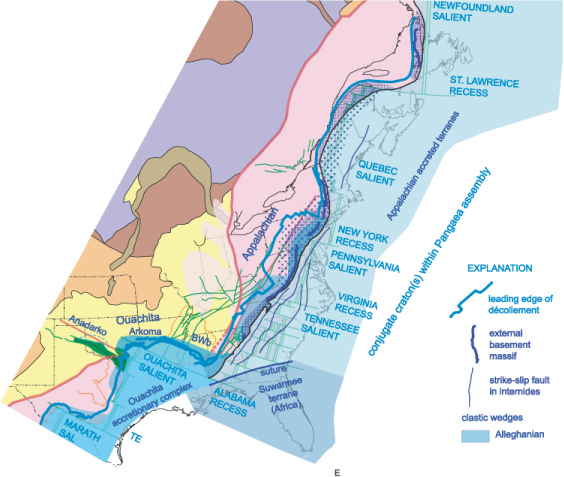

Assembly of Pangea, Appalachian-Ouachita Orogen, Closure of Iapetus

Permian Thermal Event

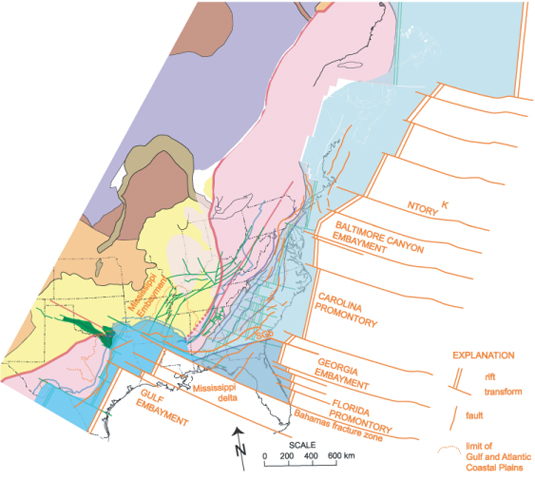

Breakup of Pangea, Opening of Atlantic Ocean

Triassic opening of Atlantic Ocean, Jurassic opening of Gulf of Mexico, Cretaceous Uplift & Thermal Event, Late Cretaceous Basin Formation

The most accepted tectonic history for the ME region is as follows:

1. The Eastern Granite-Rhyolite Province (1.8-1.6 Ga) underlies the ME, suggesting that Proterozoic basement rocks throughout the region consist primarily of granite and granite porphyry.

2. Initial opening and subsidence of the Reelfoot rift occurred in Early to Late Cambrian time (ca. 565 Ma) in response to the breakup of the supercontinent Rodinia. Rifting extended north into the Illinois Basin. Rifting was not accompanied by major intrusive or volcanic activity.

3. By Middle Cambrian time (ca. 530 Ma), the Iapatus Ocean lay to the south and by Late Cambrian (ca. 515 Ma) the Reelfoot rift was part of a stable continental passive margin, covered by a thick deposit of shallow marine carbonates.

4. Middle Ordovician through Lower Cretaceous (ca. 470 – 90 Ma) sediments are missing from the Reelfoot Rift implying that non-deposition or uplift and erosion occurred.

5a. According to Thomas, Cambrian faults in the Reelfoot Rift were reactivated in the Late Paleozoic (ca. 290 Ma) in response to the closing of the Iapatus Ocean (Alleghanian - Ouachita orogony); the Reelfoot Rift was elevated and the Pascola arch formed, separating the Reelfoot Rift from the Illinois Basin to the north. Intrusive activity along the axis of the MVG accompanied the reactivation.

5b. According to others, reactivation of the ME and uplift of the Pascola arch occurred in Mid-Cretaceous. Intrusive activity accompanied the reactivation.

6. In either case 5, the ME was elevated in the Mid-Cretaceous and subsidence began in Late Cretaceous. The northern ME, including the Pascola arch, is presently covered with unconsolidated Late Cretaceous and Cenozoic sediments. The ME may still be subsiding but at a very low rate.
